Top Cat Handle Schematic

Buy Parts Repair Services Print Schematics

Schematics Image

Top Cat Handle Schematic

Top Cat Handle Schematic

OPERATING BUTTON
$39.00
200-9 O-RING
$0.50
SET SCREW
$1.12
OILER PLUG
$4.60
GASKET
$0.65
550-33 INLET BUSHING
$17.75
METRIC ADAPTER CAP
$11.57

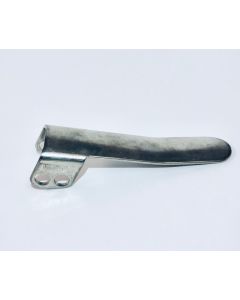

LEVER
$12.40
LEVER PIN
$1.45
560-13 THROTTLE VALVE ASSY
$22.35
600-51 THROTTLE VALVE SPRING
$2.25
BARE BUTTON HANDLE
$54.52
BARE LEVER HANDLE
$72.50
650-35 SCREEN BASKET
$3.86
SAFETY LATCH SPRING
$4.45
SAFETY LATCH
$28.20
650-61 O-RING
$0.95
SAFETY LATCH PIN
$6.25
BUSHING
$7.25
OILER PLUG SCREW
$1.59
700-30 O-RING
$1.25
PIVOT SCREW
$1.35
LOCK WASHER ( 2 REQ.)
$1.00
700-S-26 Throttle Valve Cap
$15.99
